HTTPS configuration for Microsoft Windows

Overview

Configuring HTTPS for Microsoft Windows installations involves modifying various CAST Imaging services that are part of the imaging-services component, therefore, all configuration should be actioned on the machine on which this component is installed. The services in question are:

• CAST Imaging SSO Service
• CAST Imaging Gateway Service
• CAST Imaging Authentication Service

In addition, a persistence data schema needs updating.

Requirements

• CAST Imaging v3 must be installed and up and running before you proceed.
• CAST highly recommends using CA (Certificate Authority) signed certificates, rather than self-signed. This documentation assumes that CA signed certificates are in use.
• Local administrator privileges (ability to Run as administrator on Microsoft Windows)

Step 1 - generate public/private keys

A public (e.g.: public_key.crt) and private (e.g. private_key.key) key pair is required and CAST highly recommends that you do not use self-signed certificates - instead you should use certificates signed by a CA (Certificate Authority). One certificate key pair can be used for both CAST Services.

To generate a private key and a CSR (certificate signing request) which can be sent to a Certificate Authority, run the following command on the host machine (see also https://docs.openssl.org/1.1.1/man1/req/) :

openssl req -new -newkey rsa:2048 -nodes -keyout private_key.key -out csr.csr

Where:

• req - indicates that we want a CSR
• -new - generates a brand new CSR
• -newkey - generates a new private key
• rsa:2048 - generates a 2048-bit RSA mathematical private key
• -nodes - no DES, meaning do not encrypt the private key in a PKCS#12 file
• -keyout - defines the name of the private key file
• -out - defines the name of the CSR file

Retain the private_key.key file and use the contents of the csr.csr file to generate the public_key.crt at your chosen CA.

Step 2 - Configure CAST Imaging SSO Service

This service can be configured to load the required key pair using files in PEM container format or from a Java Keystore. When both alternatives are configured, the PEM container format takes precedence over the Java Keystore. This documentation provides instructions using keys in PEM container format.

Copy key pair to correct location

Copy your key pair (e.g.: public_key.crt and private_key.key) to the following location:

%PROGRAMFILES%\CAST\Imaging\CAST-Imaging-SSO\conf\

Edit keycloak.conf file

Open the following file in a text editor:

%PROGRAMFILES%\CAST\Imaging\CAST-Imaging-SSO\conf\keycloak.conf

Make the following changes:

• Change the line http-port=8096 to https-port=8096
• Uncomment the line starting #https-certificate-file and modify it to point to your public_key.crt file, e.g.: https-certificate-file=${kc.home.dir}conf/public_key.crt
• Uncomment the line starting #https-certificate-key-file and modify it to point to your private_key.key file, e.g.: https-certificate-key-file=${kc.home.dir}conf/private_key.key

https-port=8096
...
...
...
# HTTP

# The file path to a server certificate or certificate chain in PEM format.
#https-certificate-file=${kc.home.dir}conf/public_key.crt

# The file path to a private key in PEM format.
#https-certificate-key-file=${kc.home.dir}conf/private_key.key
...
...
...

Finally, save and close the file.

Step 3 - Configure CAST Imaging Gateway Service

This service requires that the key pair are stored in a Java Keystore (gateway.jks). You can re-use the same key pair that you generated in Step 1.

Convert key pair into PKCS#12 format keystore

Private .key files cannot be stored directly in a Java Keystore, therefore you will need to first convert/combine the public_key.crt and private_key.key files into PKCS#12 format keystore, which can then be imported into the Java Keystore. To do so, run the following command to generate the .P12 PKCS#12 format keystore (see also https://www.openssl.org/docs/man1.1.1/man1/openssl-pkcs12.html) :

openssl pkcs12 -export -in public_key.crt -inkey private_key.key -name gateway -out gateway.p12

Where:

• pkcs12 - indicates the format of the output file
• -export - indicates that we require the creation of a file
• -in - defines the name of the public key file
• -inkey - defines the name of the private key file
• -name - defines a “friendly” name for the combined key pair
• -out - defines the name of the resulting .p12 file

Import PKCS#12 format keystore into Java format keystore

Run the following command using the Java keytool tool. This will import the gateway.p12 keystore into the Java format keystore:

keytool -importkeystore -srckeystore gateway.p12 -destkeystore gateway.jks -srcstoretype PKCS12

Copy Java keystore to correct location

Copy your Java keystore (e.g.: gateway.jks) to the following location:

%PROGRAMFILES%\CAST\Imaging\CAST-Imaging-gateway\

Edit application.yml file

Open the following file in a text editor:

%PROGRAMFILES%\CAST\Imaging\CAST-Imaging-gateway\application.yml

Edit the existing server entry to add in the required HTTPS configuration and change the service, auth line to https, for example:

server:
    forward-headers-strategy: framework
    port: 443
    ssl:
        enabled: true
        key-alias: gateway
        key-store: gateway.jks
        key-store-type: JKS
        key-store-password: <keystore password>
        key-password: <key password>
    service:
        admin-center: http://localhost:8098
        auth: https://localhost:8096
    tomcat:
        remote:
        remote-ip-header: x-forwarded-host

Where:

• server, port - set this to 443 to ensure your end-users do not need to append a port number to the CAST Imaging access URL
• server, ssl, enabled - set this to true
• server, ssl, key-alias - set this to the friendly name configured when running the OpenSSL tool to convert the key pair into the PKCS#12 format keystore via the -name command
• server, ssl, key-store-type - set this to JKS
• server, ssl, key-store-password - set this to the password you created when running the Java keytool tool to import the PKCS#12 format keystore into Java format keystore
• server, ssl, enabled - set this to the password you created when running the OpenSSL tool to convert the key pair into the PKCS#12 format keystore
• server, service, auth - change the existing http protocol to https (this line refers to the CAST Imaging SSO Service which is now using HTTPS)

Finally, save and close the file.

Step 4 - Configure CAST Imaging Authentication Service

Open the following file in a text editor:

%PROGRAMFILES%\CAST\Imaging\CAST-Imaging-auth-service\application.yml

Find the existing server entry and modify the following

• service, auth entry to https (this line refers to the CAST Imaging SSO Service which is now using HTTPS)
• service, nginx entry to the fully qualified domain name of the current machine with https:// protocol

server:
  forward-headers-strategy: framework
  port: 8092
  service:
    admin-center: http://localhost:8098
    auth: https://localhost:8096
    gatewayPort: ${PORT_GATEWAY:8090}
    nginx: https://<FQDN>
  tomcat:
    remoteip:
      remote-ip-header: x-forwarded-host

Finally, save and close the file.

Step 5 - Modify the control_panel schema

Using pgAdmin, connect to the CAST Storage Service/PostgreSQL instance on which the control_panel schema (admin_center in ≤ 3.2) schema is located (this schema is created during the installation process).

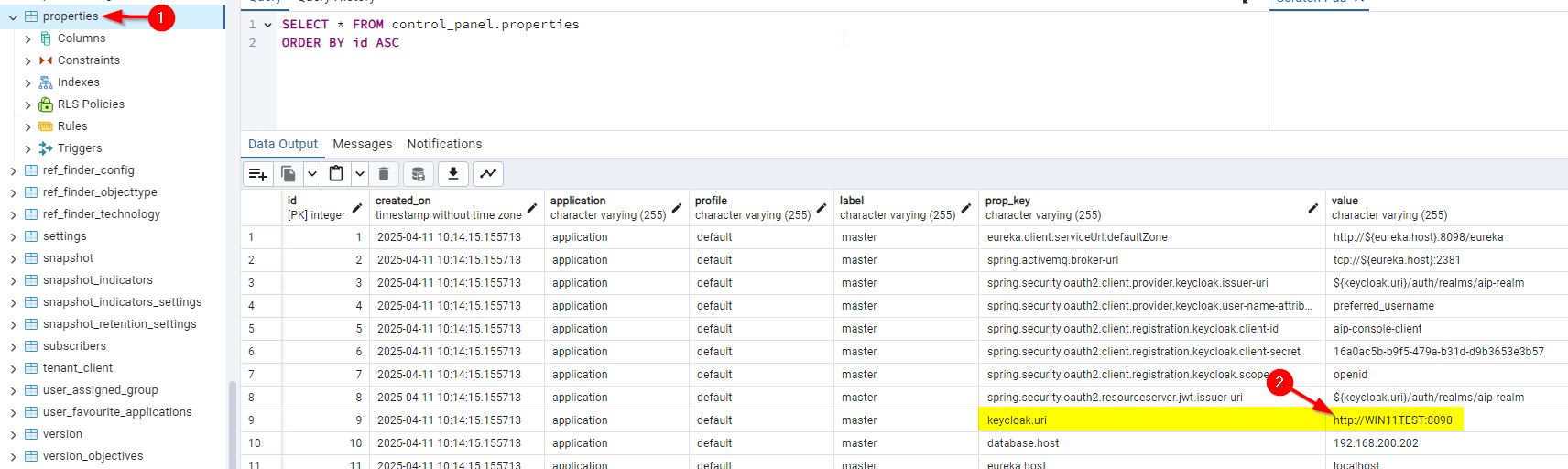

Locate the properties table in this schema and then locate the keycloak.uri entry:

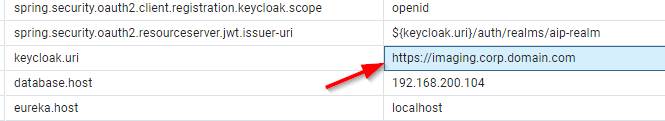

The Value column contains the URI used to access the CAST Imaging SSO Service - you need to change this to ensure that HTTPS is used and remove the port number (assuming you have set the CAST Imaging Gateway Service to use port 443 in Step 3):

Ensure the new value is saved.

Step 6 - Restart all services and test access

To ensure that all changes are taken in to account, restart all CAST Imaging services on your machine. If you have remote nodes and/or remote CAST Imaging Viewer services on separate machines, these should also be restarted. You can then test access using the secure HTTPS protocol, for example using the machine’s FQDN (fully qualified domain name):

https://imaging.corp.domain.com

Step 7 - Install additional node(s)

If you need to install an additional node component AFTER having enabled HTTPS, you should ensure that you edit the SECURED_CONNECTION installation variable in the config-analysis-node.conf file and set it to true. This is to ensure that the health check that is actioned at the end of the component installation process to check that the component is “up” and running will use HTTPS. See also Microsoft Windows installation variables.

Troubleshooting

CAST Imaging Gateway Service fails to start when using self-signed certificates

If you have used self-signed .key and .crt files, you may find that the CAST Imaging Gateway Service fails to start with the error:

javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target

This generally indicates that the Java runtime installed on the local machine cannot verify the self-signed certificate - in other words that the self-signed certificate cannot be found in the java cacerts file. This is why CAST highly recommends using certificates that are signed by a CA (certificate authority) instead, as this avoids this problem. To workaround this issue, you need to import your .crt file into the Java JRE cacerts file, using keytool:

keytool -importcert -trustcacerts -file [path_to_cert_file] -alias [alias] -keystore %JAVA_HOME%\lib\security\cacerts
