Support of DynamoDB for Node.js - JavaScript

CAST supports DynamoDB via its com.castsoftware.nodejs extension. Details about how this support is provided for Node.js JavaScript source code is discussed below.

Objects

Icon	Description
	Node.js DynamoDB Endpoint
	Node.jsDynamoDB Table

Links

DynamoDB API

Link Type	Function api v2	Commands from SDK V3 imported from ‘@aws-sdk/client-dynamodb’
No Link	createGlobalTable createTable	-
useSelectLink	createBackup getItem batchGetItem transactWriteItems batchWriteItem restoreTableToPointInTime	CreateTableCommand BatchGetItemCommand GetItemCommand
useDeleteLink	deleteTable deleteItem transactWriteItems batchWriteItem	DeleteTableCommand DeleteItemCommand
useUpdateLink	transactWriteItems batchWriteItem updateItem updateTable putItem restoreTableToPointInTime restoreTableFromBackup	PutItemCommand UpdateItemCommand UpdateCommand

DocumentClient

Link Type	Function api v2
useSelectLink	batchGet transactGet get scan query batchWrite transactWrite
useDeleteLink	batchWrite transactWrite delete
useUpdateLink	put update batchWrite transactWrite

API: Commands from SDK V3

imported from '@aws-sdk/client-dynamodb'

Link Type	Function
No Link	CreateGlobalTableCommand CreateTableCommand
useSelectLink	CreateBackupCommand GetItemCommand BatchGetItemCommand TransactGetItemsCommand RestoreTableToPointInTimeCommand
useDeleteLink	DeleteItemCommand DeleteTableCommand TransactWriteItemsCommand BatchWriteItemCommand
useUpdateLink	TransactWriteItemsCommand BatchWriteItemCommand UpdateItemCommand CreateBackupCommand UpdateTableCommand PutItemCommand RestoreTableFromBackupCommand

Code samples

API v2 sample

These declaration will establish a connection to the database located on localhost:

var AWS = require("aws-sdk");

AWS.config.update({
  region: "us-west-2",
  endpoint: "http://localhost:8000"
});

var dynamodb = new AWS.DynamoDB();

These declarations will create a useUpdateLink from code to the database “myDatabase”:

/* This example adds a new item to the Music table. */

var params = {
  Item: {
    "AlbumTitle": {
      S: "Somewhat Famous"
    },
    "Artist": {
      S: "No One You Know"
    },
    "SongTitle": {
      S: "Call Me Today"
    }
  },
  ReturnConsumedCapacity: "TOTAL",
  TableName: "Music"
};
dynamodb.putItem(params, function(err, data) {
  if (err) console.log(err, err.stack); // an error occurred
  else     console.log(data);           // successful response
});

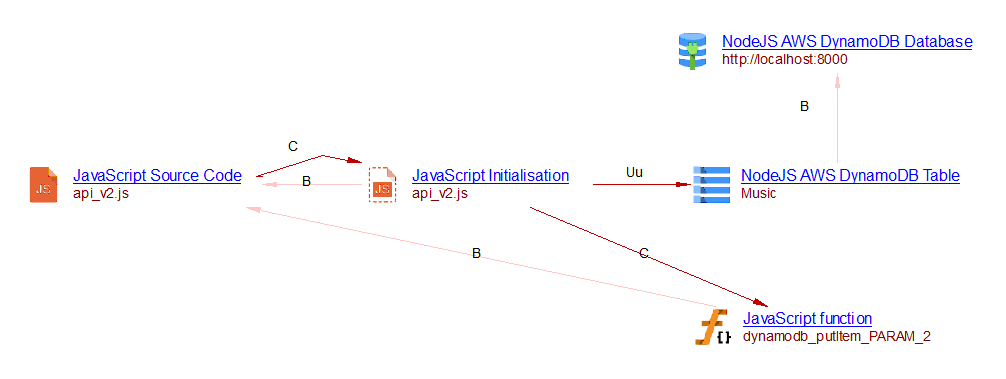

What results can you expect?

Api v3 sample

These declaration swill establish a connection to the database located on localhost, create two tables, and create links:

const {DynamoDBClient} = require("@aws-sdk/client-dynamodb");
const REGION = "us-east-1";
const ddbClient = new DynamoDBClient({region: REGION,
                                      endpoint: "http://localhost:8000" });
export { ddbClient };

const {CreateTableCommand} = require("@aws-sdk/client-dynamodb");
const {PutItemCommand } = require("@aws-sdk/client-dynamodb");
const {DeleteTableCommand } = require("@aws-sdk/client-dynamodb");

// Set the parameters
export const params_put = {
  TableName: "TABLE_NAME_2",
  Item: {
    CUSTOMER_ID: { N: "001" },
    CUSTOMER_NAME: { S: "Richard Roe" },
  },
};

export const create = async () => {
  try {
    const data = await ddbClient.send(new CreateTableCommand({TableName: "TABLE_NAME"}));
    console.log("Table Created", data);
    return data;
  } catch (err) {
    console.log("Error", err);
  }
};
create();

export const put_item = async () => {
  try {
    const data = await ddbClient.send(new PutItemCommand(params_put));
    console.log("Table Updated", data);
    return data;
  } catch (err) {
    console.log("Error", err);
  }
};
put_item();

export const delete_item = async () => {
  try {
    const data = await ddbClient.send(new DeleteTableCommand({TableName: "TABLE_NAME"}));
    console.log("Success, table deleted", data);
    return data;
  } catch (err) {
      console.log("Error", err);
    }
};
delete_item();
