RPG - 3.5

Extension ID

com.castsoftware.rpg

What’s new?

See Release Notes.

Description

This extension provides support for applications written using RPG languages and/or CL languages.

Supported languages

• RPG III (also known as GAP 3)
• RPG IV Fixed Format with traditional operation code
• RPG IV Fixed Format with alternate Calc spec and Extended Factor 2
• RPG IV Free Format
• RPG IV Full Free
• CL

Function Point, Quality and Sizing support

• Function Points (transactions): a green tick indicates that OMG Function Point counting and Transaction Risk Index are supported
• Quality and Sizing: a green tick indicates that CAST can measure size and that a minimum set of Quality Rules exist

Compatibility

Download and installation instructions

The extension will be automatically downloaded and installed in CAST Console when at least one RPG type file is delivered for analysis. You can manage the extension using the Application - Extensions interface.

Prepare and deliver the source code

When the extension is downloaded and installed, you can now package your source code and run an analysis. The process of preparing and delivering your source code is described below:

Source code preparation

Before the RPG source code can be delivered and then analyzed, it needs to be collected from the proper iSeries libraries and transferred to the designated location. During this operation, each artifact (program, CL, DSPF) must be put into a single file only. This will result in a single artifact per file. Furthermore, the type of source code must be expressed using the extension to the file. The appropriate file extensions are listed in the following table.

Source code is kept in a member of a file. The file is kept in a library. Each file can have many members. Each member is the source code for a program. The source code files can have any name but conventionally the names start with Q and end with SRC, for source.

The RPG Analyzer is able to autodetect RPG III versus RPG IV, so there is no difference in using *.rpg or *.rpgle. What is very important is to distinguish between Display, Printer, Logical and Physical files using the specific file extensions listed in above table.

What about IBM Db2 for i source code?

In previous releases of the RPG Analyzer extension, when IBM Db2 for i source code was delivered, a dedicated extraction process was launched within the RPG Analyzer to transform this source code into a format that could be analyzed. Starting in release ≥ 3.1.x, the RPG Analyzer is no longer responsible for analyzing source code from IBM DB2 for i. Instead, this task is undertaken by the com.castsoftware.sqlanalyzer  (release ≥ 3.5.4 is required).

There is no change to source code delivery process when using AIP Console - the IBM DB2 for i source code should be delivered together with the RPG source code and AIP Console will be able to detect this type of source code and create the necessary Analysis Units. For those using legacy CAST Management Studio/Delivery Manager Tool, the source code delivery process has changed and is explained below.

IBM Db2 for i is also known as DB400.

Deliver the source code

Using CAST Imaging Console

RPG is supported in CAST Console ≥ 1.22.

CAST Imaging Console expects either a ZIP/archive file or source code located in a folder configured in Console. You should include in the ZIP/source code folder all RPG and IBM DB2 for i (if present) source code. CAST highly recommends placing the files in a folder dedicated to RPG. If you are using a ZIP/archive file, zip the folders in the “temp” folder - but do not zip the “temp” folder itself, nor create any intermediary folders:

D:\temp
    |-----RPG
    |-----OtherTechno1
    |-----OtherTechno2

When the source code has been delivered, CAST Imaging Console will create an Analysis Unit for:

• IBM Db2 for i (if present)
• RPG

Analysis configuration

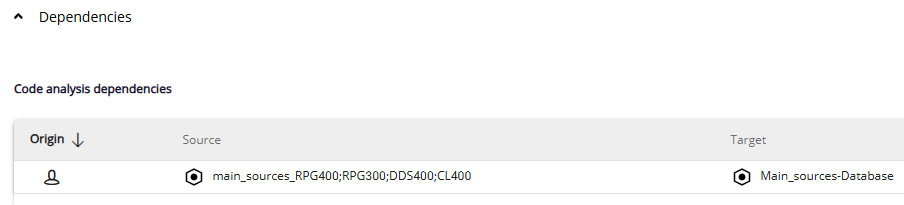

Add a dependency between the RPG Analysis Unit as Source and SQL Universal Analysis Unit as the target:

Starting from CAST Imaging Console 1.26, this dependency will be automatically added and no manual intervention is required. You should still check that the dependency is present, however.

Configuring Technical Size measures for RPG in the CAST Health Dashboard

Technical Size measures can be displayed for RPG analysis results in the CAST Health Dashboard by manually editing the following file:

1.x WAR file: %CATALINA_HOME%\webapps\<dashboard>\portal\resources\app.json
2.x WAR file: %CATALINA_HOME%\webapps\<dashboard>\WEB-INF\classes\config\hd\app.json
2.x ZIP file: com.castsoftware.aip.dashboard.2.0.0\config\hd\app.json

Add the following entries into the existing section “TechnicalSizeMeasures”:

"TechnicalSizeMeasures": {
...
      {
        "id": 1008000,
        "label": "Number of RPG400 Program(RPG400)"
      },
      {
        "id": 1008001,
        "label": "Number of RPG400 Subroutine(RPG400)"
      },
      {
        "id": 1008002,
        "label": "Number of RPG400 Procedure(RPG400)"
      },
      {
        "id": 1008003,
        "label": "Number of RPG IV Copy Member(RPG400)"
      },
      {
        "id": 1009000,
        "label": "Number of RPG300 Program(RPG300)"
      },
      {
        "id": 1009001,
        "label": "Number of RPG300 Subroutine(RPG300)"
      },
      {
        "id": 1009003,
        "label": "Number of RPG300 Copy Member(RPG300)"
      }
}

Following any changes you make, save the app.json file and then restart your application server so that the changes are taken into account.

What results can you expect?

Transaction Sample

C     SCRLVL        CHAIN     PACCLVS
C                   IF        %FOUND
C                   DELETE    RACCLV
C                   ENDIF

CALL       PGM(&EXTLIB/&EXTPGM)

CL language

See CL Language for more information.

RPG Language

See RPG Language for more information.

Objects

Icon	Object Name	Comment
	CL Project RPG III Project RPG IV Project DDS Project	Interal object to define a scope for CL, RPG III, RPG IV and DDS objects.
	CL Program RPG III Program RPG IV Program	Standard Program declaration
	CL Call to Generic Program RPG III Call to Generic Program RPG IV Call to Generic Program	Created when a call to a program is not resolved or an external program
	RPG IV Module	Created for files that starts with the keyword “NOMAIN”.
	RPG IV Procedure RPG IV Missing Procedure	Standard Procedure declaration. Created when a reference to a procedure is found.
	RPG IV Procedure Prototype	Standard Procedure Prototype declaration.
	CL Subroutine RPG III MainSubroutine RPG III Subroutine RPG IV MainSubroutine RPG IV Subroutine	Standard Subroutine declaration
	CL EXEC SQL RPG III EXEC SQL RPG IV EXEC SQL	SQL CL example SQL RPG examples
	CL Call to Sql File	SQL script CL example STRQMQRY CL example
	CL Data Area	Data Area CL example
	CL Data Queue Publisher RPG III Data Queue Publisher RPG IV Data Queue Publisher CL IBM MQ Queue Publisher RPG III IBM MQ Queue Publisher RPG IV IBM MQ Queue Publisher	DataQ CL example DataQ RPG example IBM MQ CL example IBM MQ RPG example
	CL Data Queue Receiver RPG III Data Queue Receiver RPG IV Data Queue Receiver CL IBM MQ Queue Receiver RPG III IBM MQ Queue Receiver RPG IV IBM MQ Queue Receiver	DataQ CL example DataQ RPG example IBM MQ CL example IBM MQ RPG example
	CL Data Unknown Queue Publisher RPG III Data Unknown Queue Publisher RPG IV Data Unknown Queue Publisher CL IBM MQ Unknown Queue Publisher RPG III IBM MQ Unknown Queue Publisher RPG IV IBM MQ Unknown Queue Publisher	DataQ CL example DataQ RPG example IBM MQ CL example IBM MQ RPG example
	CL Data Unknown Queue Receiver RPG III Data Unknown Queue Receiver RPG IV Data Unknown Queue Receiver CL IBM MQ Unknown Queue Receiver RPG III IBM MQ Unknown Queue Receiver RPG IV IBM MQ Unknown Queue Receiver	DataQ CL example DataQ RPG example IBM MQ CL example IBM MQ RPG example
	CL Disk File RPG III File Disk RPG IV File Disk CL Display File RPG III File Workstn RPG IV File Workstn RPG III File Printer RPG IV File Printer RPG III File Special RPG IV File Special RPG III File Seq RPG IV File Seq	Created when a reference to a LF/PF/DSPF/PTRF file is found within a Program (or MainSubroutine/Subroutine/Procedure).
	DDS Logical File	DDS Logical File is associated to .lf file and is a hidden object to help linking between RPG III/RPG IV/CL Disk File and Sql Views.
	CL Missing Physical/Logical File RPG III Missing Physical/Logical File RPG IV Missing Physical/Logical File DDS Physical File	DDS Physical File is associated to .pf file and is a hidden object to help linking between RPG III/RPG IV/CL Disk File and Sql Tables. This icon is also used for transaction End Point when there is RPG III/RPG IV/CL Disk File references but no .lf or .pf files associated.
	CL Missing Display File RPG III Missing Display File RPG IV Missing Display File DDS Display File RPG III Missing Printer File RPG IV Missing Printer File DDS Printer File	DDS Display File and DDS Printer File are associated with .dspf and .prtf files, respectively. This icon is also used for transaction End Point when there is RPG III/RPG IV Display/Printer Files references but no .dspf or .ptrf files associated.
	RPG III Copy Member RPG IV Copy Member RPG III Missing Copy Member RPG IV Missing Copy Member	-
	RPG III SQL Statement/Structure	-
	RPG IV Get Resource Service	REST RPG examples
	RPG IV Post Resource Service	REST RPG examples
	RPG IV Put Resource Service	REST RPG examples
	RPG IV Delete Resource Service	REST RPG examples
	DDS Join Structure	Deprecated will soon be removed from the documentation.
	DDS Section	Deprecated will soon be removed from the documentation.
	DDS Record Structure LF	Deprecated will soon be removed from the documentation.
	DDS Record Structure PF	Deprecated will soon be removed from the documentation.

Links

CL Links

Caller Icon	Caller Type	Link Type	Callee Icon	Callee Type	Remarks
	CL Program	call Link		CL Program	-
	CL Program	call Link		CL Subroutine	-
	CL Program	call Link		CL Call to Generic Program
	CL Subroutine	call Link		CL Call to Generic Program
	CL Subroutine	call Link		CL Call to Sql File	SQL script CL example STRQMQRY CL example
	CL Subroutine	call Link		CL Program
	CL Subroutine	call Link		CL Subroutine
	CL Program	call Link		CL Data Queue Publisher	DataQ CL example
	CL Data Queue Receiver	call Link		CL Program	DataQ CL example
	CL Data Unknown Queue Receiver	call Link		CL Program	DataQ CL example
	CL Program	call Link		CL IBM MQ Publisher	IBM MQ CL example
	CL IBM MQ Queue Receiver	call Link		CL Program	IBM MQ CL example
	CL Program	call Link		CL EXEC SQL	SQL CL example
	CL Program	call Link		CL Call to Sql File	SQL Script CL example STRQMQRY CL example
	CL Program	Use Select Link		CL Disk File	DCLF command example
	CL Disk File	Relyon Link		CL Missing Physical/logical File	DCLF command example
	CL Program	Access link		CL Display File	DCLF command example
	CL Program	Read Access link		CL Display File	DCLF command example
	CL Program	Write Access link		CL Display File	DCLF command example
	CL Missing Display File	call Link		CL Program	DCLF command example
	CL Program	Access link		CL Data Area	Data Area Example
	CL Program	Read Access link		CL Data Area	Data Area Example
	CL Program	Write Access link		CL Data Area	Data Area Example

RPG III Links

Caller Icon	Caller Type	Link Type	Callee Icon	Callee Type	Remarks
	RPG III Program	call Link		RPG III Main Subroutine	-
	RPG III MainSubroutine	call Link		RPG III Program	-
	RPG III MainSubroutine	call Link		RPG III Subroutine	-
	RPG III Subroutine	call Link		RPG III Subroutine	-
	RPG III Subroutine	call Link		RPG III Call to Generic Program	-
	RPG III MainSubroutine	call Link		RPG III Call to Generic Program	-
	RPG III MainSubroutine	call Link		RPG III EXEC SQL	SQL RPG III example
	RPG III Program	Access link		RPG III File Workstn	RPG Display File
	RPG III Missing Display File	call Link		RPG III Program	RPG Display File
	RPG III File Disk	Relyon Link		RPG III Missing Physical/Logical File	RPG Disk File
	RPG III File Printer	Relyon Link		RPG III Missing Printer File	-
	RPG III MainSubroutine	Use Insert Link		RPG III File Disk	RPG Disk File
	RPG III MainSubroutine	Use Select Link		RPG III File Disk	RPG Disk File
	RPG III MainSubroutine	Use Delete Link		RPG III File Disk	RPG Disk File
	RPG III MainSubroutine	Use Update Link		RPG III File Disk	RPG Disk File
	RPG III Subroutine	Use Insert Link		RPG III File Disk	RPG Disk File
	RPG III Subroutine	Use Select Link		RPG III File Disk	RPG Disk File
	RPG III Subroutine	Use Delete Link		RPG III File Disk	RPG Disk File
	RPG III Subroutine	Use Update Link		RPG III File Disk	RPG Disk File

RPG IV Links

Caller Icon	Caller Type	Link Type	Callee Icon	Callee Type	Remarks
	RPG IV Program	call Link		RPG IV MainSubroutine
	RPG IV Program	call Link		RPG IV Procedure Prototype
	RPG IV Procedure Prototype	call Link		RPG IV Program
	RPG IV Missing Display File	call Link		RPG IV Program
	RPG IV MainSubroutine	call Link		RPG IV Procedure
	RPG IV MainSubroutine	call Link		RPG IV Procedure Prototype
	RPG IV MainSubroutine	call Link		RPG IV Program
	RPG IV MainSubroutine	call Link		RPG IV Subroutine
	RPG IV MainSubroutine	call Link		RPG IV Call to Generic Program	-
	RPG IV Subroutine	call Link		RPG IV Call to Generic Program	-
	RPG IV Procedure Prototype	call Link		RPG IV Call to Generic Program	-
	RPG IV Procedure Prototype	call Link		RPG IV Missing Procedure	-
	RPG IV Program	includeLink		RPG IV Missing Copy Member	-
	RPG IV Procedure	call Link		RPG IV Procedure
	RPG IV Procedure	call Link		RPG IV Procedure Prototype
	RPG IV Procedure	call Link		RPG IV Subroutine
	RPG IV Subroutine	call Link		RPG IV Procedure
	RPG IV Subroutine	call Link		RPG IV Procedure Prototype
	RPG IV Subroutine	call Link		RPG IV Program
	RPG IV Subroutine	call Link		RPG IV Subroutine
	RPG IV Procedure Prototype	call Link		RPG IV Module
	RPG IV Procedure Prototype	call Link		RPG IV Procedure
	RPG IV Copy Member	call Link		RPG IV Subroutine
	RPG IV MainSubroutine	call Link		RPG IV EXEC SQL	SQL RPG IV example
	RPG IV Subroutine	call Link		RPG IV EXEC SQL	SQL RPG IV example
	RPG IV Copy Member	call Link		RPG IV EXEC SQL	SQL RPG IV example
	RPG IV Procedure	call Link		RPG IV EXEC SQL	SQL RPG IV example
	RPG IV Program	accessLink		RPG IV File Workstn	RPG Display File
	RPG IV Module	accessLink		RPG IV File Workstn	RPG Display File
	RPG IV File Disk	Relyon Link		RPG IV Missing Physical/Logical File
	RPG IV File Printer	Relyon Link		RPG IV Missing Printer File
	RPG IV MainSubroutine	Use Select Link		RPG IV File Disk	RPG Disk File
	RPG IV MainSubroutine	Use Delete Link		RPG IV File Disk	RPG Disk File
	RPG IV MainSubroutine	Use Insert Link		RPG IV File Disk	RPG Disk File
	RPG IV MainSubroutine	Use Update Link		RPG IV File Disk	RPG Disk File
	RPG IV MainSubroutine	Use Insert Link		RPG IV File Printer
	RPG IV Subroutine	Use Insert Link		RPG IV File Printer
	RPG IV Procedure	Use Select Link		RPG IV File Disk	RPG Disk File
	RPG IV Procedure	Use Delete Link		RPG IV File Disk	RPG Disk File
	RPG IV Procedure	Use Insert Link		RPG IV File Disk	RPG Disk File
	RPG IV Procedure	Use Update Link		RPG IV File Disk	RPG Disk File
	RPG IV Subroutine	Use Select Link		RPG IV File Disk	RPG Disk File
	RPG IV Subroutine	Use Delete Link		RPG IV File Disk	RPG Disk File
	RPG IV Subroutine	Use Insert Link		RPG IV File Disk	RPG Disk File
	RPG IV Subroutine	Use Update Link		RPG IV File Disk	RPG Disk File

DDS Links

Caller Icon	Caller Type	Link Type	Callee Icon	Callee Type	Remarks
	DDS Logical File	Use Select Link		DDS Logical File
	DDS Logical File	Use Select Link		DDS Physical File
	DDS Physical File	Use Select Link		DDS Physical File

inter-technology Links

CL-DDS Links

Caller Icon	Caller Type	Link Type	Callee Icon	Callee Type	Remarks
	CL Disk File	Relyon Link		DDS Display File
	CL Disk File	Relyon Link		DDS Logical File
	CL Disk File	Relyon Link		DDS Physical File
	DDS Display File	call Link		CL Program
	CL Program	Use Select Link		DDS Logical File
	CL Program	Use Select Link		DDS Physical File

RPG III-DDS Links

Caller Icon	Caller Type	Link Type	Callee Icon	Callee Type	Remarks
	DDS Display File	call Link		RPG III Program
	RPG III File Disk	Relyon Link		DDS Logical File
	RPG III File Disk	Relyon Link		DDS Physical File
	RPG III MainSubroutine	Use Update Link		DDS Logical File
	RPG III MainSubroutine	Use Insert Link		DDS Logical File
	RPG III MainSubroutine	Use Select Link		DDS Logical File
	RPG III MainSubroutine	Use Insert Link		DDS Physical File
	RPG III MainSubroutine	Use Select Link		DDS Physical File
	RPG III Subroutine	Use Delete Link		DDS Logical File
	RPG III Subroutine	Use Update Link		DDS Logical File
	RPG III Subroutine	Use Select Link		DDS Logical File
	RPG III Subroutine	Use Insert Link		DDS Logical File
	RPG III Subroutine	Use Insert Link		DDS Physical File
	RPG III Subroutine	Use Update Link		DDS Physical File
	RPG III Subroutine	Use Select Link		DDS Physical File
	RPG III Subroutine	Use Delete Link		DDS Physical File

RPG IV-DDS Links

Caller Icon	Caller Type	Link Type	Callee Icon	Callee Type	Remarks
	DDS Display File	call Link		RPG IV Module
	DDS Display File	call Link		RPG IV Program
	RPG IV File Disk	Relyon Link		DDS Logical File
	RPG IV File Disk	Relyon Link		DDS Physical File
	RPG IV File Disk	Relyon Link		DDS Printer File
	RPG IV File Printer	Relyon Link		DDS Physical File
	RPG IV File Printer	Relyon Link		DDS Printer File
	RPG IV MainSubroutine	Use Select Link		DDS Logical File
	RPG IV MainSubroutine	Use Update Link		DDS Logical File
	RPG IV MainSubroutine	Use Delete Link		DDS Logical File
	RPG IV MainSubroutine	Use Insert Link		DDS Logical File
	RPG IV MainSubroutine	Use Update Link		DDS Physical File
	RPG IV MainSubroutine	Use Insert Link		DDS Physical File
	RPG IV MainSubroutine	Use Select Link		DDS Physical File
	RPG IV MainSubroutine	Use Delete Link		DDS Physical File
	RPG IV MainSubroutine	Use Insert Link		DDS Printer File

CL-RPG III & RPG IV Links

Caller Icon	Caller Type	Link Type	Callee Icon	Callee Type	Remarks
	RPG III MainSubroutine	call Link		CL Program
	RPG III Subroutine	call Link		CL Program
	RPG IV MainSubroutine	call Link		CL Program
	RPG IV Procedure Prototype	call Link		CL Program
	RPG IV Subroutine	call Link		CL Program
	CL Program	call Link		RPG III Program
	CL Program	call Link		RPG IV Copy Member
	CL Program	call Link		RPG IV Procedure
	CL Program	call Link		RPG IV Program
	CL Subroutine	call Link		RPG IV Program

Analysis log messages

The following list of log messages may occur during an analysis and will help locate in which file the warning occured. In addition, just before the Analyzer Statistical Report is displayed in the log file, the extension will report the total number of occurences of these messages, for example:

Info   : [com.castsoftware.rpg] RPG-001: Cannot resolve copy GFCOLEC/QRPGSRC/GF_OBTCN_L -- 1 occurrences
Info   : [com.castsoftware.rpg] RPG-001: Cannot resolve copy QRPGLESRC/HTTPAPI_H -- 5 occurrences
Info   : [com.castsoftware.rpg] RPG-002: Cannot resolve DDS file SGGQGC00 -- 5 occurrences
Info   : [com.castsoftware.rpg] RPG-002: Cannot resolve DDS file SGGQGD00 -- 5 occurrences
Info   : [com.castsoftware.rpg] RPG-002: Cannot resolve DDS file SGSPLZ00 -- 2 occurrences
Info   : [com.castsoftware.rpg] RPG-003: Cannot resolve program RTNFECHA -- 5 occurrences
Info   : [com.castsoftware.rpg] RPG-003: Cannot resolve program SGG4648C -- 1 occurrences
Info   : [com.castsoftware.rpg] RPG-003: Cannot resolve program SGS99500 -- 5 occurrences
Info   : [com.castsoftware.rpg] RPG-003: Cannot resolve program TBL50400 -- 4 occurrences

RPG-001

RPG-002

RPG-003

RPG-004

Structural Rules

The following structural rules are provided:

Analyzer Statistical Report

At the end of an analysis, a statistical report is printed in the log file displaying the number of saved objects and links. For the com.castsoftware.rpg extension, this report splits the results by object type.

For links, the report uses the information stored in the analysis schema (caller object type, link type, callee object type) to provide a detailed view of links created by the extension.

An example statistical report is shown below:

Info   : [com.castsoftware.rpg] Stats Report:
Info   : [com.castsoftware.rpg] Number of Objects per type:
Info   : [com.castsoftware.rpg] 'RPG IV Call to Generic Program'       : 4
Info   : [com.castsoftware.rpg] 'RPG IV File Disk'                     : 12
Info   : [com.castsoftware.rpg] 'RPG IV MainSubroutine'                : 5
Info   : [com.castsoftware.rpg] 'RPG IV Missing Copy Member'           : 2
Info   : [com.castsoftware.rpg] 'RPG IV Missing Physical/Logical File' : 3
Info   : [com.castsoftware.rpg] 'RPG IV Post Resource Service'         : 5
Info   : [com.castsoftware.rpg] 'RPG IV Program'                       : 5
Info   : [com.castsoftware.rpg] 'RPG IV Subroutine'                    : 15
Info   : [com.castsoftware.rpg] Number of Links per link flags:
Info   : [com.castsoftware.rpg] 'RPG IV File Disk'       -- relyonLink    --> 'RPG IV Missing Physical/Logical File' : 12
Info   : [com.castsoftware.rpg] 'RPG IV MainSubroutine'  -- callLink      --> 'RPG IV Subroutine'                    : 11
Info   : [com.castsoftware.rpg] 'RPG IV Program'         -- callLink      --> 'RPG IV MainSubroutine'                : 5
Info   : [com.castsoftware.rpg] 'RPG IV Program'         -- includeLink   --> 'RPG IV Missing Copy Member'           : 6
Info   : [com.castsoftware.rpg] 'RPG IV Subroutine'      -- callLink      --> 'RPG IV Call to Generic Program'       : 15
Info   : [com.castsoftware.rpg] 'RPG IV Subroutine'      -- useSelectLink --> 'RPG IV File Disk'                     : 2
Info   : [com.castsoftware.rpg] 'RPG IV Subroutine'      -- callLink      --> 'RPG IV Post Resource Service'         : 5
Info   : [com.castsoftware.rpg] 'RPG IV Subroutine'      -- callLink      --> 'RPG IV Subroutine'                    : 8

Known limitations

• SOAP services are not supported
• With regard to RPG language:
  • Dynamic calls are not supported
  • Dynamic SQL is partially supported since 3.3.0-alpha2 (prepare and execute immediate with variables are resolved when encountered in RPG IV free format; the support for RPG IV fixed format and CL is available since 3.3.0-alpha3)
  • If you code the /FREE or /END-FREE directive, it will be ignored by the compiler, but the syntax of the directive will be checked - see the official documentation reference . The com.castsoftware.rpg extension requires BOTH directives (i.e. a closing /END-FREE directive if there is an opening /FREE directive and vice-versa) in the source code: a missing opening or closing directive will produce traceback issues and missing objects. To fix the issue ensure you add the missing /FREE or /END-FREE appropriately within the file for it to be properly analyzed.
